(iv) A method of measuring ambient dose rates

Ambient dose rates are being measured at the radiation monitoring posts set up in various areas within Fukushima Prefecture.
This section will explain how ambient dose rates are measured at the radiation monitoring posts and introduce some other survey meters used for ambient dose rate measurement.

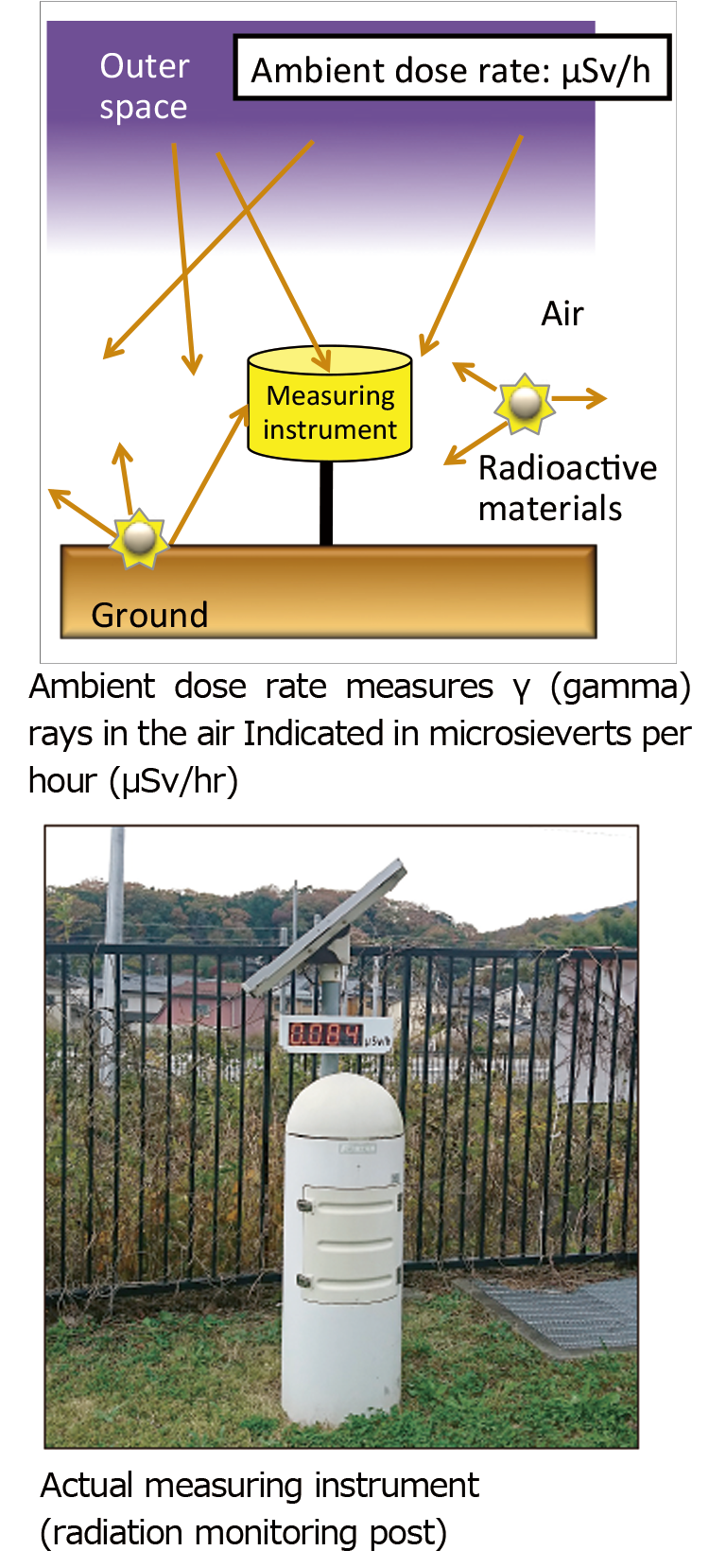

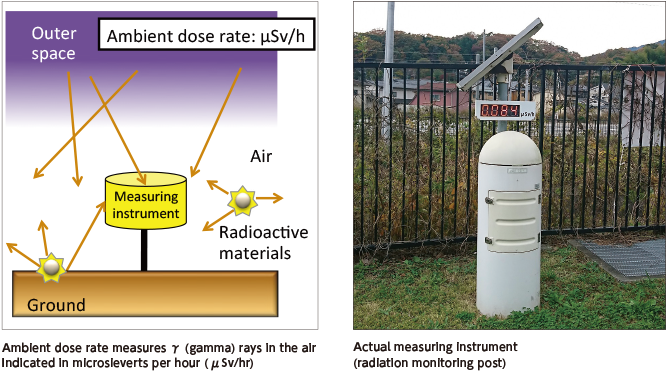

Ambient dose rate measurement

Ambient dose rate measurement

The ambient dose rate is obtained by measuring γ -ray doses in the air, and is indicated in microsieverts per hour. The measured value is not limited to the amount of radiation derived from accidents. Natural radiation mainly comes from the ground and cosmic rays.
Normally, a measuring instrument is placed at a height of about 1 m from the ground, because most important internal organs are located at this height in the case of an adult. The height of measuring instruments may be set to 50 cm from the ground in places mainly visited by children, such as schools and pre-schools.

For more information about ambient dose rates, see page 49 of Vol. 1, FY2017 edition.

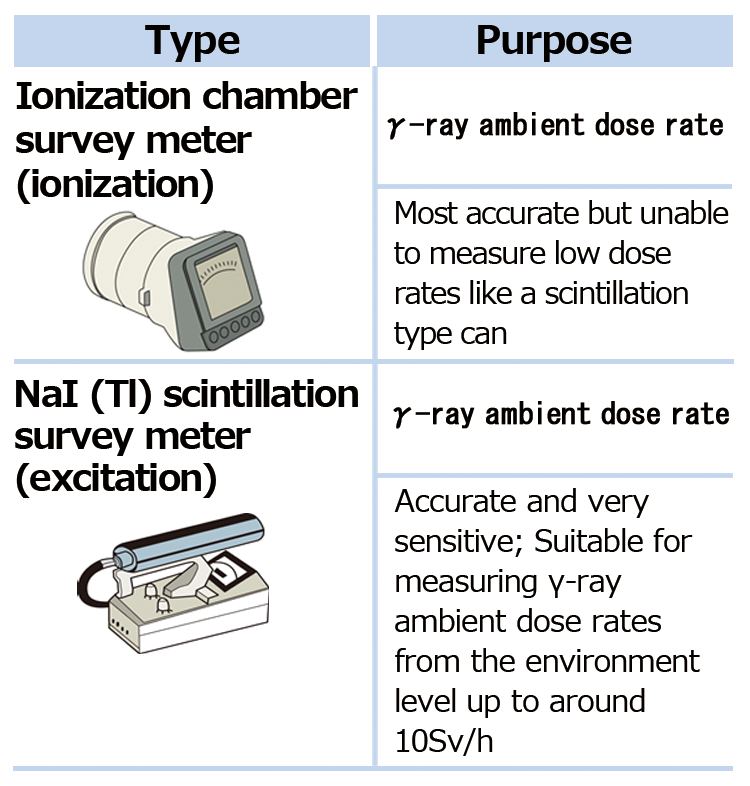

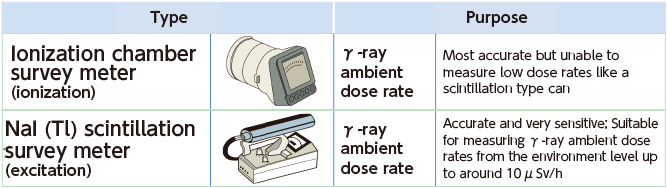

Examples of survey meters used for measuring ambient dose rates

Examples of survey meters used for measuring ambient dose rates

For more information about measuring instruments, see page 45 of Vol. 1, FY2017 edition.
